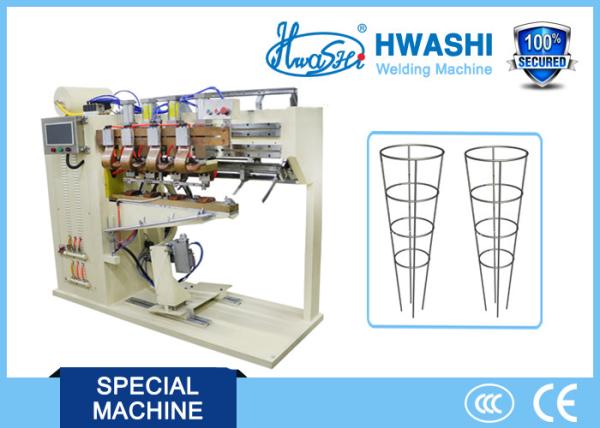

Tomato Wire Welders Support Cage / Tomato Bracket / Tomato Rack
1. Specifications:
| Model | WL-50K | WL-63 | WL-75 | WL-100 | WL-125 | WL-150 | WL-200 |
| Power Supply (V)/Frequency | 380V/50HZ |
| Rate Capacity(KVA) | 50 | 63 | 75 | 100 | 125 | 150 | 200 |
| Rated Input Current(A) | 132 | 166 | 197 | 263 | 332 | 394 | 526 |
| Rated Duty Cycle(%) | 40 | 40 | 50 | 50 | 50 | 50 | 50 |
| can weld thickness(plate+plate)(mm) | 3+3 | 3.5+3.5 | 4+4 | 4.5+4.5 | 5+5 | 5.5+5.5 | 6+6 |
| can weld diameter(wire+wire)(mm) | 10+10 | 11+11 | 12+12 | 14+14 | 15+15 | 16+16 | 18+18 |
| Upper Electrodes Max Stroke(mm) | 80-100 |
| Gas Operating Pressure(Mpa) | 0.5 | 0.5 | 0.55 | 0.55 | 0.55 | 0.55 | 0.6 |
| Cooling Water(L/minute) | 620 | 620 | 700 | 720 | 750 | 750 | 800 |
| Electrodes Max Pressure(KN) | 4.8 | 5.2 | 6 | 6.3 | 9 | 11 | 12 |
| Weight(kg) | 280 | 300 | 350 | 380 | 400 | 430 | 460 |
2. Introduction:
1)Tomato Wire Support Cage / Tomato Bracket / Tomato Rack Welding Machine uses block type of electrodes, use electricity and pressure, the contact resistance between work pieces produces heat to melt the metals to realize welding. It has automatic wire filling system . Which filling the wire, the machine can weld automatically.
2) No need any solder.
3) High efficiency.
4) Cost efficient.
3. Our advantages:
1)Controller Transformer: epoxy resin casting, core part uses copper, inner strong water cooling, can work continuously with reliable welding quality, long life service.
2)Use reliable qualit pneumatic parts to guarantee stable pressure and welding quality.
3)Advanced minicomputer controller, one machine can weld different specifications of wires meshes, can do spot welding, row welding and projection welding based on needs.
4. Application:
COMPETITIVE ADVANTAGE
1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
